SUPERIOR
COMPACTION
SYSTEMS

Model M300L

FEATURES

  • Heavy duty construction
  • Automatic multi-cycle operation
  • Low maintenance

OPTIONS

  • CAT3 safety panel
  • Pin off systems
  • Odor control equipment
  • Oil heater
  • Remote jog controls
  • Enclosures

IDEAL FOR

Supermarkets Department Stores
Commercial Industrial
Hospitals Hotels
Malls
Contact us for a FREE QUOTE

SPECIFICATIONS


Items Model M300L

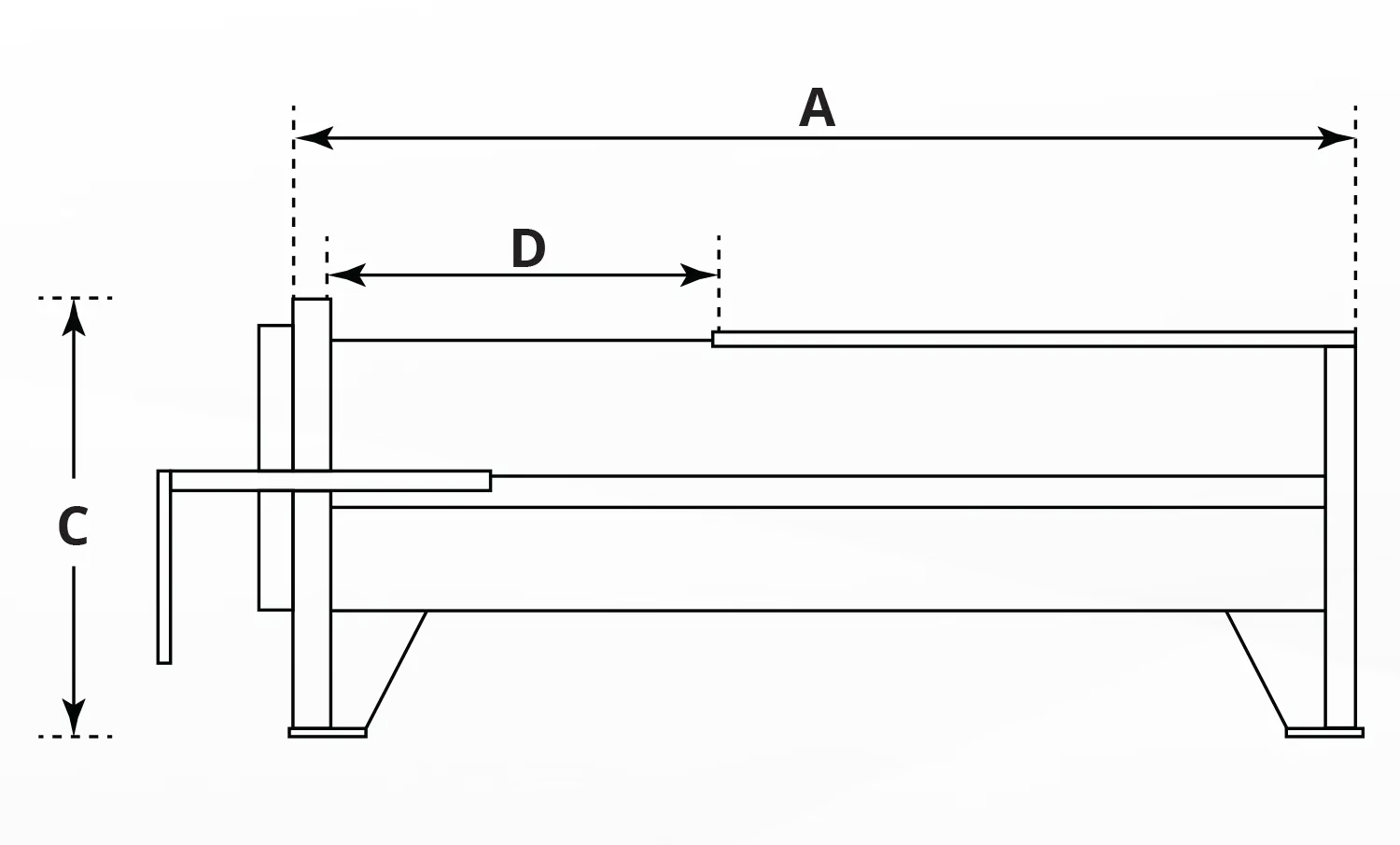

Length A 160"
Width B 79"
Height C 45"
Charging area 3 cu. yd.
Clear top opening D 60" x 60"
Frame
Floor
Side
1/2"
3/8"
Ram
Face - W x H
Floor
Top
Sides
Guides
60" x 27"
1/2"
3/8"
3/8"
1" x 1" FB
Penetration 21"
Breaker Bars 6" x 5" x 1" FB
Cylinder
Bore
Stroke
6" Dual
78"
Motor Rating 15 HP
Cycle Time 68 sec
Electrical Requirements 208/575
Ram Force 56,000 lb.
System Pressure 2000 psi
